With the intensification of global climate change, governments around the world have introduced policies to encourage
the development of renewable energy. China has explicitly stated in the 14th Five Year Plan to vigorously develop solar energy,and industrial
and commercial photovoltaic projects have received strong support under this policy background.
If a company can effectively utilize solar energy, it can not only reduce the burden of electricity bills and promote sustainable development,
but also enhance the company's image, which is in line with future development trends.
At the same time,energy storage technology is receiving increasing attention as a solution that can store energy and release it when needed.
Energy storage technology not only helps solve the intermittent problem of renewable energy,but also improves the stability and reliability of
the power system, while providing support for fields such as smart grids and electric vehicles.
According to data from the National Energy Administration,the cumulative installed capacity in China will reach 608.92
GW in 2023, a year-on-year increase of 55%. The installed capacity of industrial and commercial photovoltaics has also
experienced rapid growth,from less than 8GW of new installed capacity in 2021 to a surge of 236.7% in 2022,reaching 25.87GW;
In the first three quarters of 2023, the newly installed capacity has reached 34.16GW.
The newly added installed capacity in 2023 is about 22.6 million kilowatts/48.7 million kilowatt hours, an increase of over 260%
compared to the end of 2022, and nearly 10 times the installed capacity at the end of the 13th Five Year Plan period.

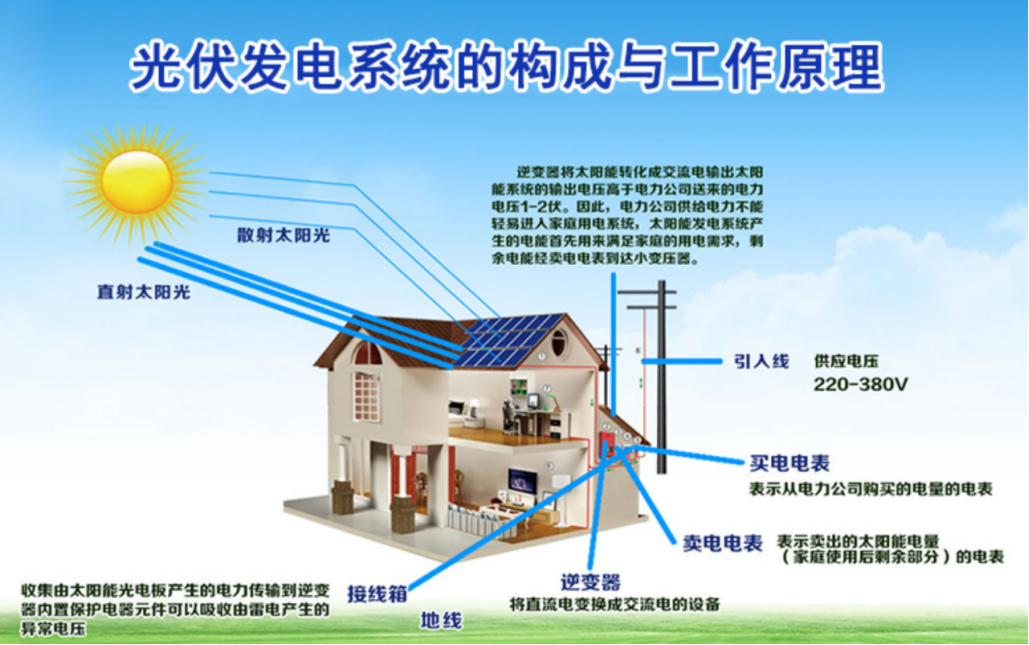

1、 Principles of Solar Power Generation
Solar power generation refers to the process of converting solar radiation into electrical energy.
Photovoltaic power generation is one of the main forms of solar power generation, which utilizes the photovoltaic effect to
directly convert solar radiation into electrical energy.

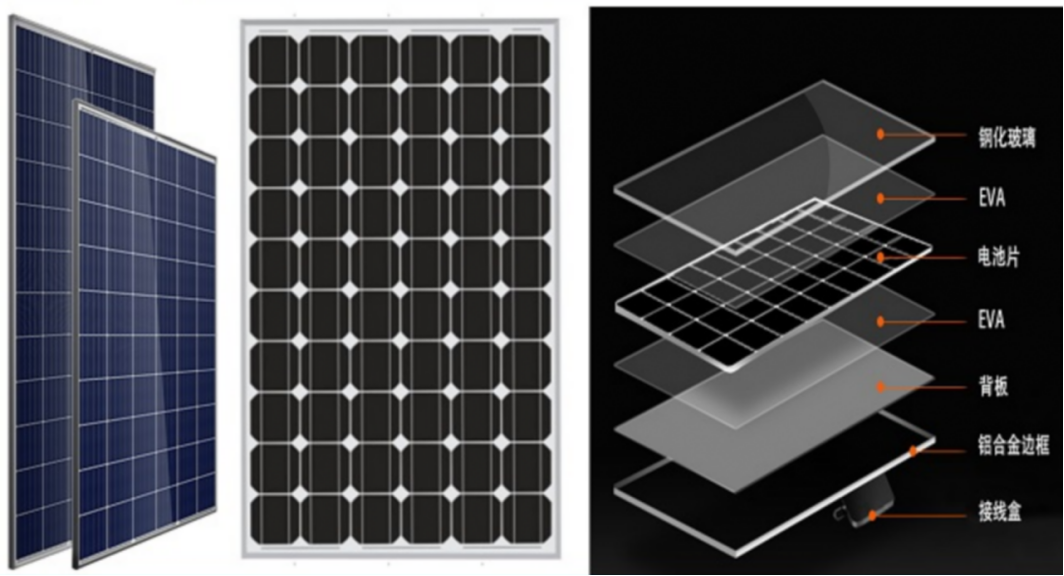

Specifically, photovoltaic modules are the core of photovoltaic power generation systems,consisting of multiple
monocrystalline and polycrystalline silicon photovoltaic cells connected in series.
When sunlight shines on high-purity silicon,electrons transition to form a potential difference, and light energy is
directly converted into direct current,and under the action of the inverter and boost system,it is converted into high-voltage AC power,
ultimately achieving the functions of electricity consumption and grid connection.
2、 Principles of Energy Storage Technology
Energy storage technology refers to the technology of storing energy in some form and releasing it when needed.
In solar power generation, energy storage technology is mainly used to solve energy storage problems,ensure a stable
power supply even when there is insufficient solar radiation.
Energy storage technology is mainly divided into three categories:
Physical energy storage,Chemical energy storage,and electromagnetic energy storage,
Among them,battery energy storage in chemical energy storage is the most commonly used energy storage method in solar power generation.
The battery energy storage system is configured with energy storage capacity according to the actual situation on site,and there are small
distribution cabinet type energy storage systems available.
There are two options for large-scale containerized energy storage
Distribution cabinet type energy storage is suitable for scenarios with small capacity configurations.
The PCS booster compartment and battery compartment are combined into one,with a small footprint
and convenient and flexible layout.

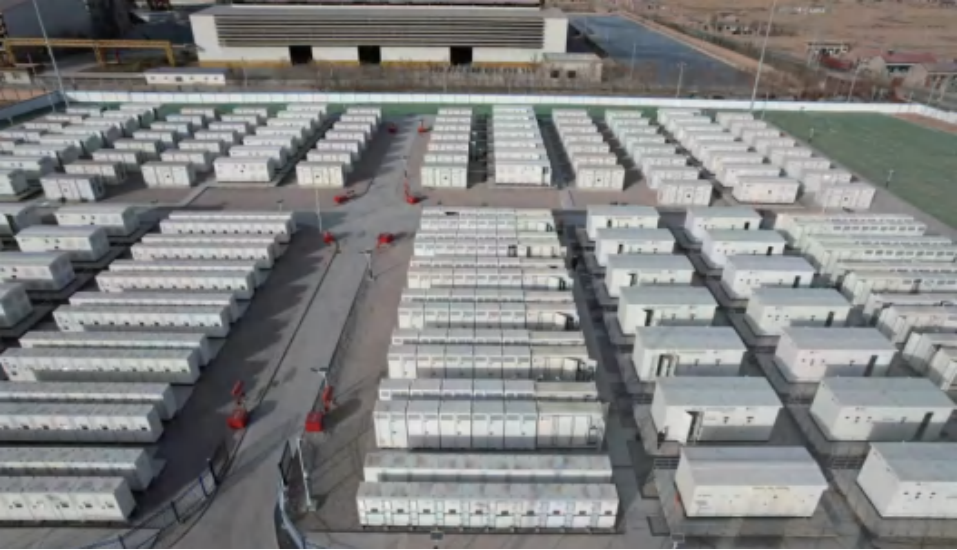

Containerized energy storage is suitable for situations with large capacity configurations,where the PCS booster
compartment and battery compartment are placed separately.
The area is relatively large and can be customized according to actual needs.
3、Core value of solar energy storage
1. Environmental protection and energy conservation:
Solar power generation does not emit harmful gases, does not pollute the environment,and has a repairing and mitigating effect on climate change.
Energy storage systems can store excess electricity and release it during peak usage periods,reducing reliance on traditional energy sources.
2. Economic benefits:
Although the installation cost is high, the long service life of solar power generation systems can significantly reduce long-term energy costs.
Meanwhile, energy storage systems can optimize energy utilization and reduce electricity bills.
3. Renewable energy:
Solar energy is a renewable energy source that will never be depleted and does not require reproduction costs.
4. Wide application range:
Solar power generation systems can be applied to various industrial and commercial occasions,Such as industrial parks,logistics centers,
commercial complexes, etc.
5. Improve power supply stability:
Energy storage devices can provide electricity in the event of insufficient solar radiation or grid failures, ensuring continuous power supply.
6. Optimizing energy structure:
By combining solar power generation and energy storage technology, the energy structure can be optimized and energy
utilization efficiency can be improved.
7. Policy support:
Relevant government departments at all levels have introduced corresponding policies to encourage users to actively develop distributed solar power
generation and energy storage systems,Promote the development of distributed energy storage construction.

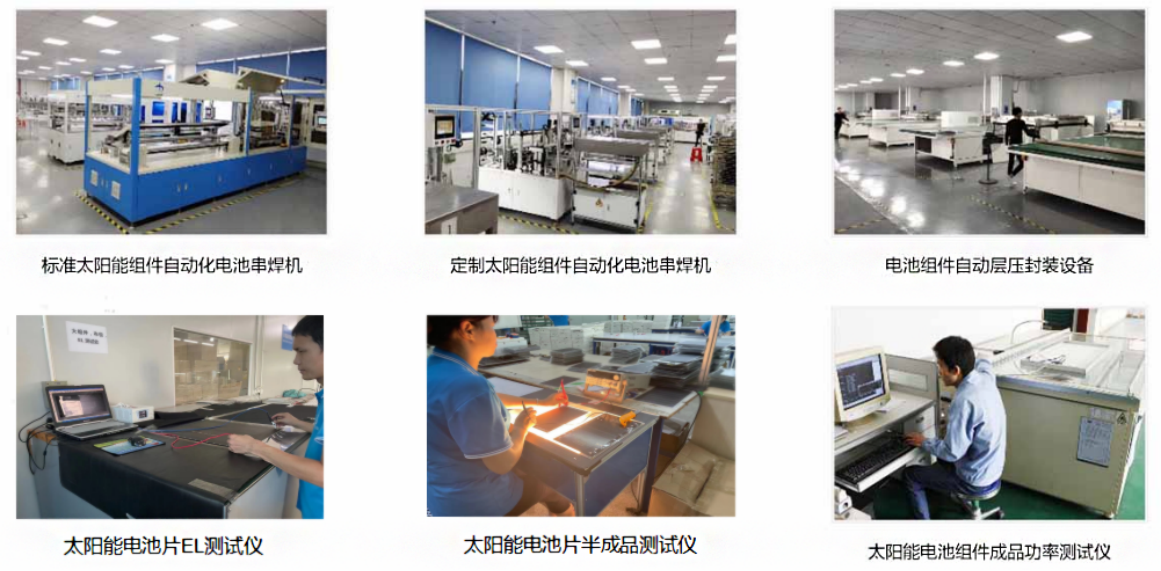

4、Main production lines and testing equipment
5、Product Display
Shengwei Energy Storage's products cover battery cells, modules, industrial and commercial,and large-scale energy storage systems.
The independently developed liquid cooled energy storage battery system is one of the system enterprises in China
that has passed UL9540A certification in both China and the United States.

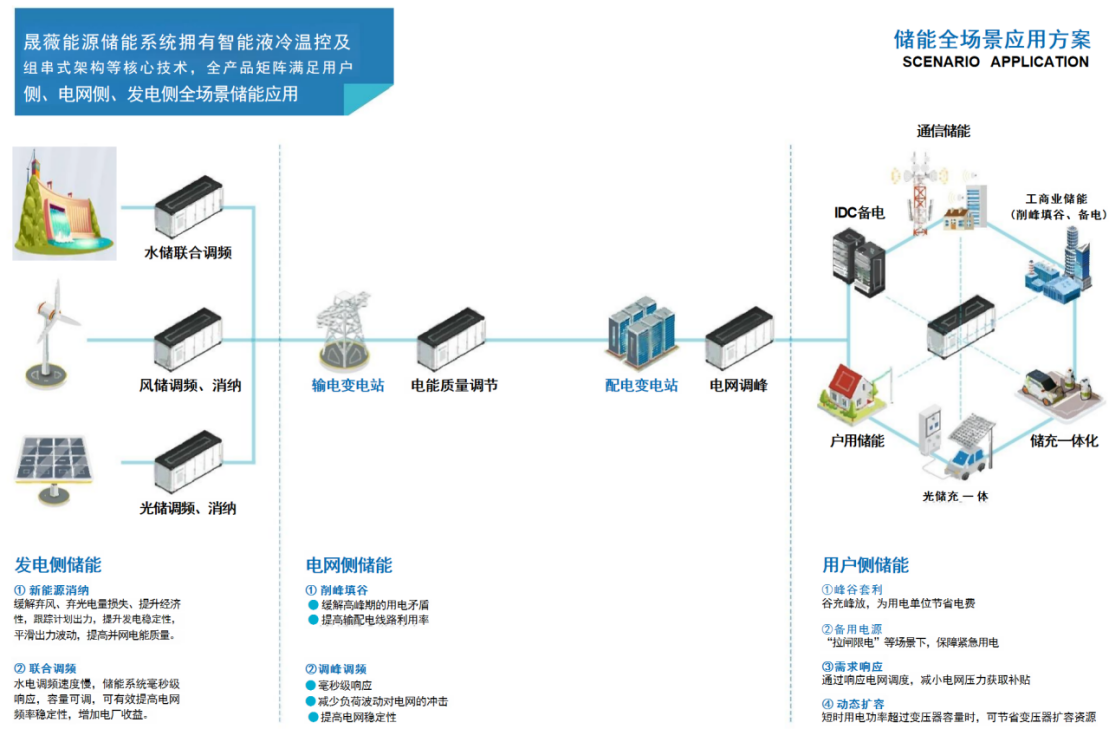

In the application fields of power grid peak shaving and frequency regulation,renewable energy grid connection,industry
and commerce,emergency backup, etc,
Shengwei Energy Storage,with its new generation of air-cooled and liquid cooled lithium battery energy storage products and overall solutions.
The energy storage projects that have been put into operation are spread throughout the domestic, European, American,Asia Pacific and other markets.
Having experience in delivering multiple large-scale energy storage projects with a capacity of 100 megawatts worldwide.
The delivery and service capabilities have been widely recognized by customers both domestically and-internationally.
Photovoltaic power generation system
Product Introduction 1
Liquid cooled cabinet/containerized energy storage system

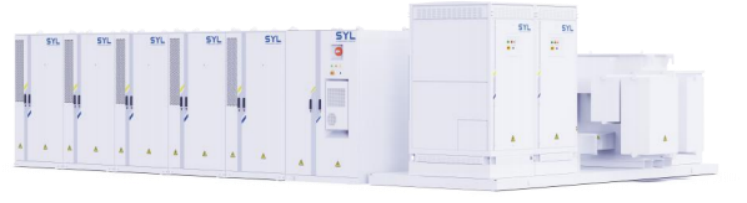

Solution for Liquid Cooled Cabinet Energy Storage System

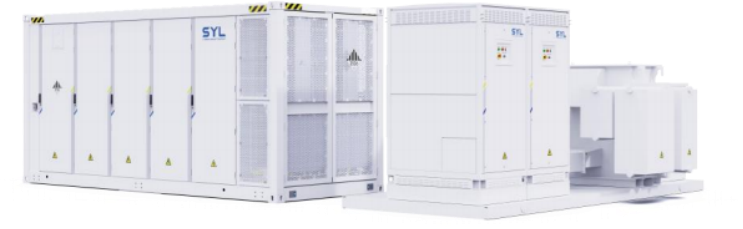

Solution for liquid cooled containerized energy storage system
Product Features
1. A one-stop solution for large-scale energy storage application scenarios
2. Equipped with multiple operating modes such as VSG, VF, PQ, etc., to improve power quality
3. Integrated design of converter and boost, highly integrated, saving equipment space and installation costs
4. High power density and modular design provide cost and solution advantages in large-scale energy storage

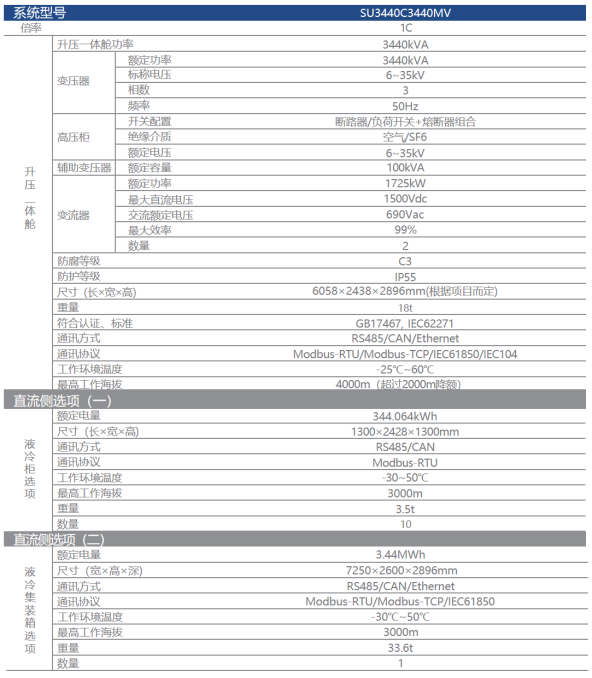

System parameter
Product Introduction 2

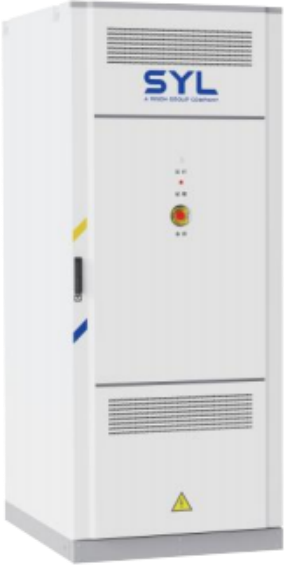

Industrial and commercial AC energy storage system
Product Features
1. Plug and play
2. 100kW energy storage inverter and 215kWh battery
3. System solution including energy storage inverter and battery

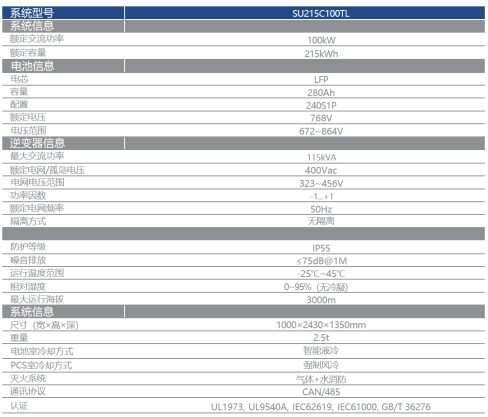

System parameter
Product Introduction 3

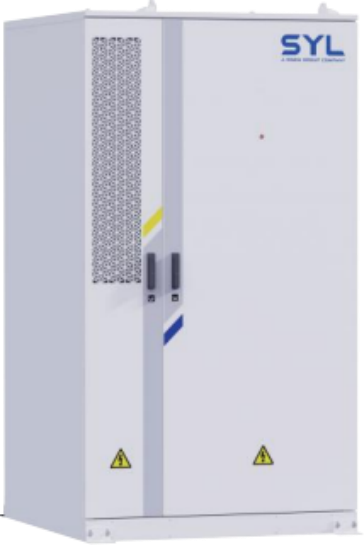

Industrial and commercial DC liquid cooling cabinet energy storage
Product Features
1. Low investment
2. Easy transportation
3. Flexible layout
4. Low on-site installation cost
System parameter
Product Introduction 4
Industrial and commercial DC liquid cooled container energy storage
Product Features
1. Low investment
2. Easy transportation
3. High integration
4. Low on-site installation cost
System parameter
Product Introduction 5

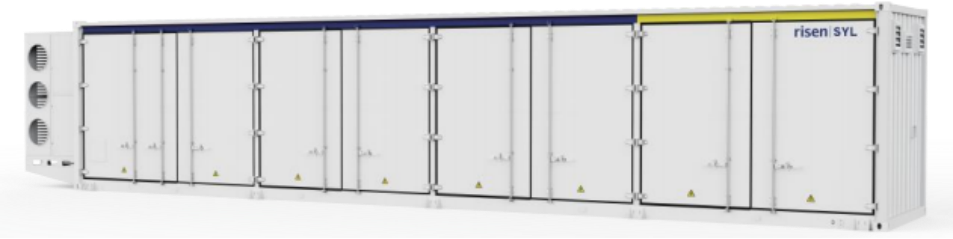

Industrial and commercial DC refrigerated container energy storage
Product Features
1. Excellent thermal management
2. Multi security design
3. Long cycle life

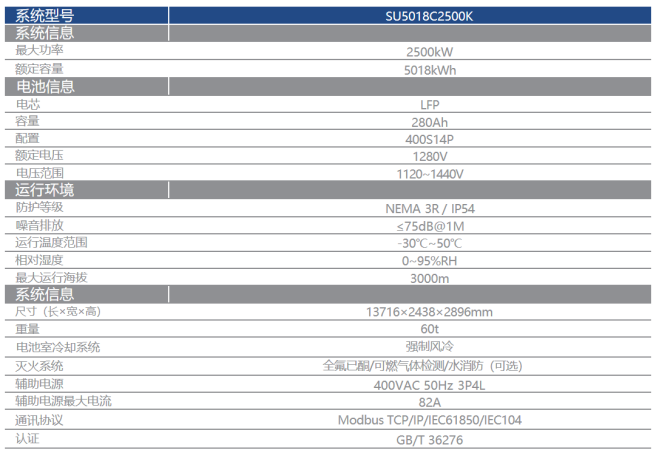

System parameter
6、Implementation process
1. Project requirement analysis and planning:
-Analyze the electricity demand of industrial and commercial users, determine the scale and configuration of photovoltaic
power generation and energy storage systems.
-Taking into account factors such as site conditions and climate, determine the installation location and orientation of the
photovoltaic power generation system.
2. System design and selection:
-Design a plan for photovoltaic power generation and energy storage systems based on project requirements, including
the selection of photovoltaic modules, energy storage batteries, inverters, etc.
-Considering factors such as system reliability, safety, and economy, conduct comprehensive evaluation and optimization design.
3. Construction and installation:
-Construct and install according to the design plan, including the installation of photovoltaic modules, energy storage
batteries, inverters, etc.
-During the construction process, strictly adhere to relevant regulations and standards to ensure construction quality and safety.
4. System debugging and testing:
-Debugging and testing of photovoltaic power generation and energy storage systems to ensure their normal operation
and compliance with design requirements.
-Test and evaluate the performance of the system, including indicators such as power generation efficiency, energy storage
efficiency, and system stability.
5. Operation and maintenance:
-Regularly operate and maintain photovoltaic power generation and energy storage systems to ensure their long-term stable operation.
-Monitor and evaluate the performance of the system, promptly identify and address faults and issues.
7、Service Features
1. Customized solutions:
-Provide customized photovoltaic power generation and energy storage system solutions based on specific customer
needs and site conditions.
-Optimize system configuration and design solutions based on customer's electricity demand and energy structure.
2. One stop service:
-Provide one-stop services from project requirement analysis, system design, construction and installation, debugging
and testing to operation and maintenance.
-Provide customers with comprehensive technical support and after-sales service to ensure the normal and long-term
stable operation of the system.
3. Intelligent monitoring and management:
-Utilizing advanced intelligent monitoring technology to monitor and manage photovoltaic power generation and
energy storage systems in real-time.
-Provide functions such as data analysis, fault diagnosis, alarm reminders, etc., to help customers discover and handle
faults and problems in a timely manner.
4. Technical training and support:
-Provide technical training and support to customers, helping them master the operation and maintenance skills of the system.
-Provide regular technical exchanges and training activities to help customers understand the latest technological
trends and developments.
5. Operation and maintenance services:
-Provide a professional operation and maintenance service team to regularly inspect and maintain the system.
-Provide 24-hour online technical support and troubleshooting services to ensure the normal operation and timely
response of the system.
6. Financing and Financial Services:
-Collaborate with financial institutions to provide financing and financial support services to clients.
-Assist clients in reducing investment costs,improving the economic benefits and feasibility of projects.
8、 Application case of energy storage system

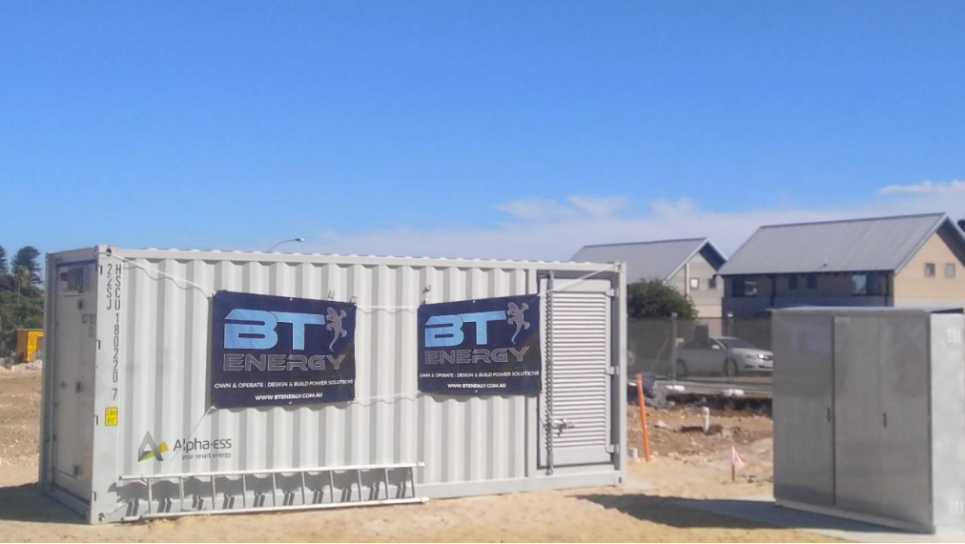

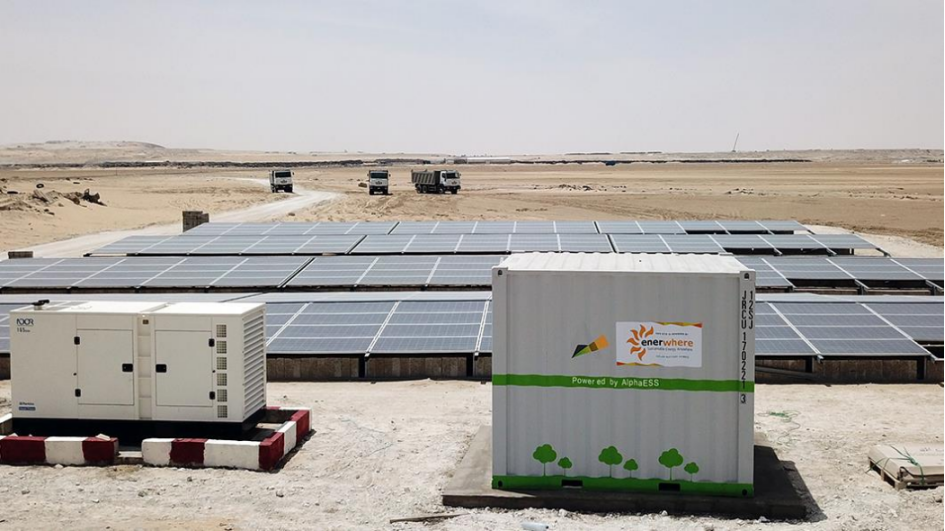

Project:10 foot container,100kW/206kWh
Application:Solar Energy+Diesel+Waste Storage Management Center
Location:Dubai

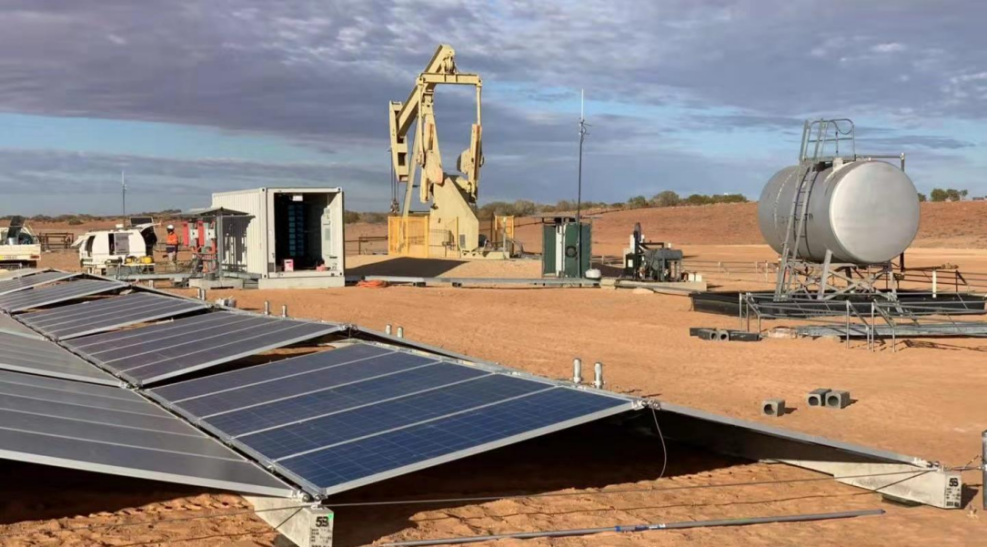

Project:100 kW/400 kWh
Application:Solar energy+diesel+oil storage water pump on-site
Location:Mba,South Australia,Australia

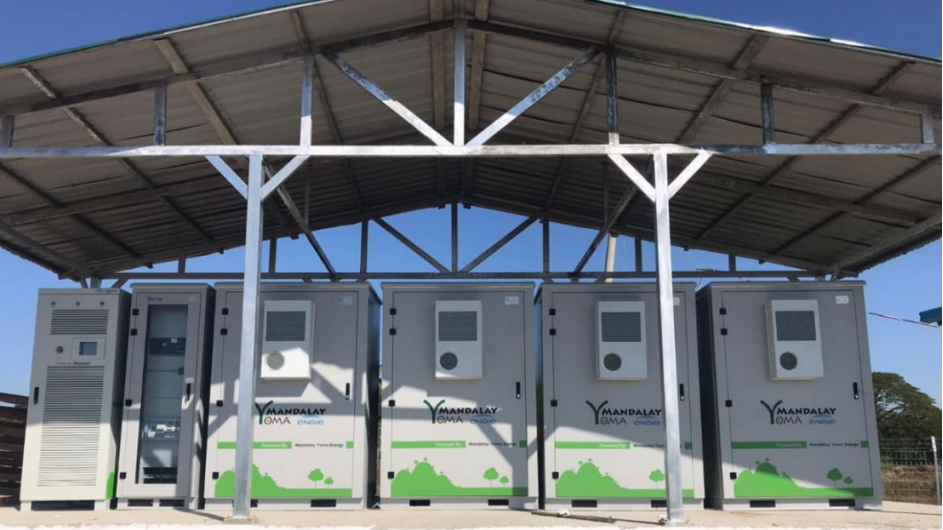

Project:100kW/412kWh
Application:Solar energy+energy storage+diesel rural electrification
Location:Pet Pye Village, Myanmar
Project:100kW/670kWh and 50 × SMILE5 5kW
Application:Energy self-sufficient community
Location:Australia

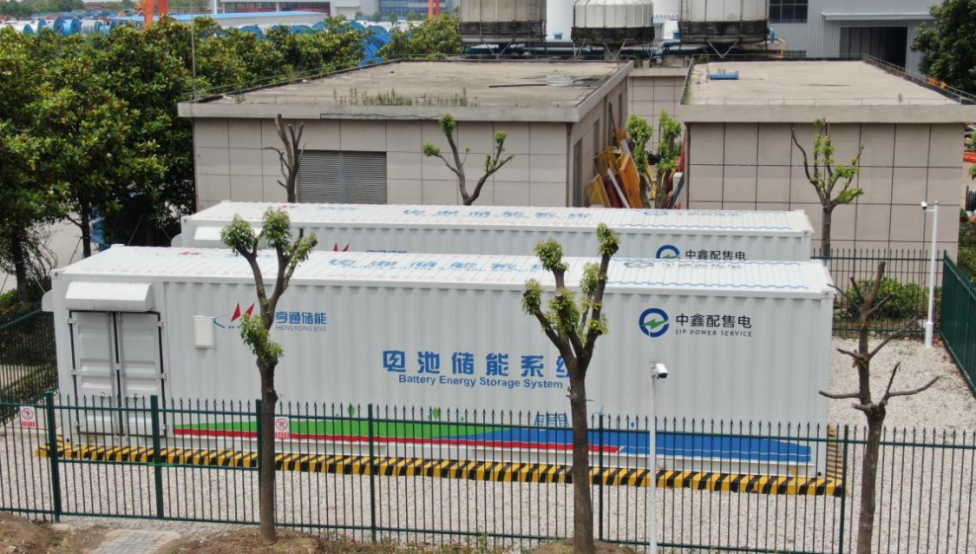

Project:2MW/8MWh
Application:Hengtong High Voltage Park Peak shaving+UPS
Location:Changshu, China

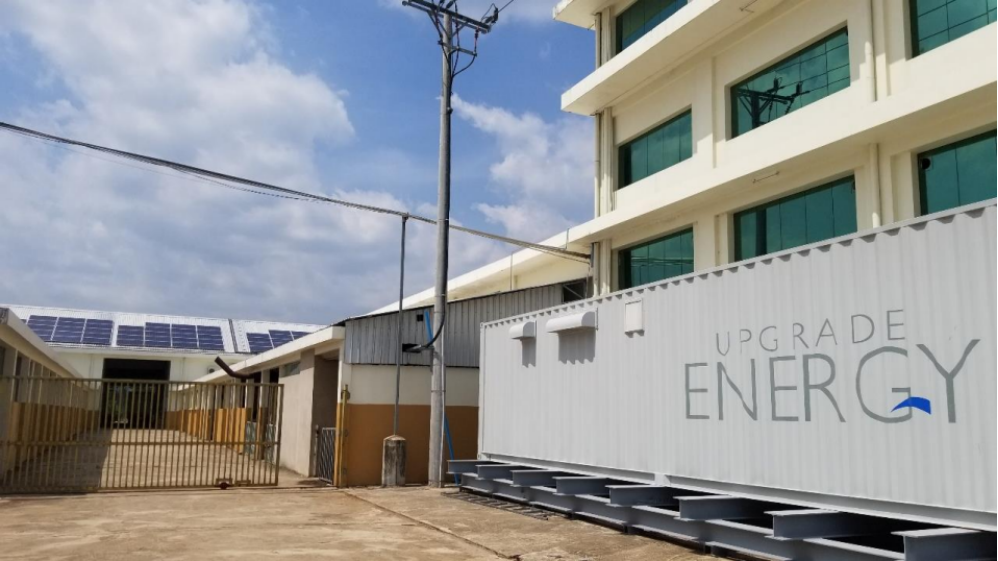

Project:500kW/1.26MWh
Application:UPS+load management for pharmaceutical factories
Location:Cambodi
