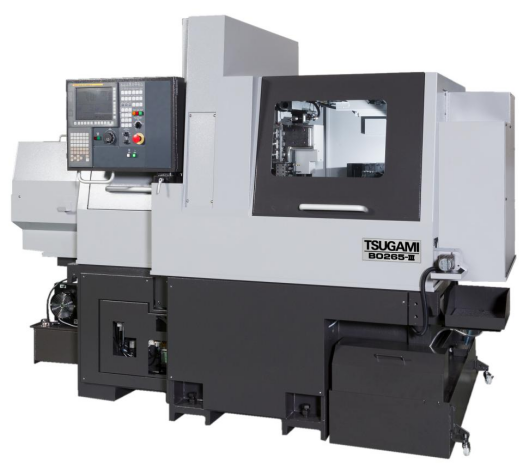

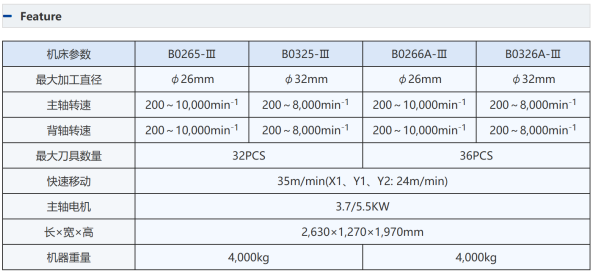

B0265-III B0325-III B0266A-III B0326A-III lathe
Features
Portal type high rigidity model, with an increased processing range.
Rich end face and lateral power head combination configuration.
Specializing in stainless steel, large diameter, and heavy cutting.

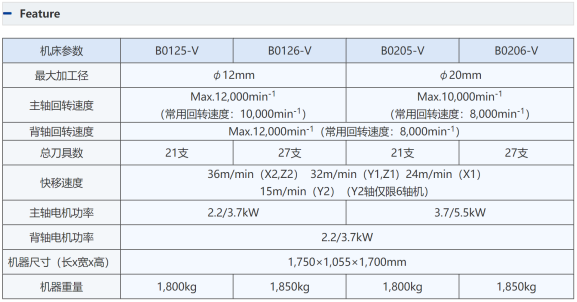

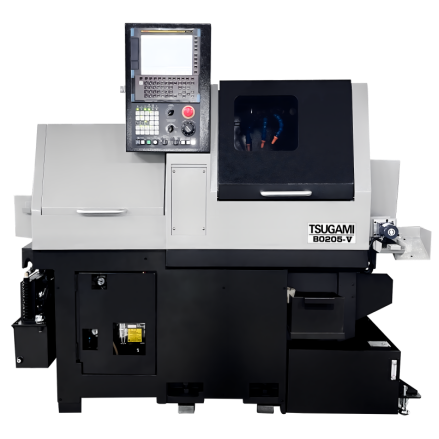

B0125-V B0205-V B0126-V B0206-V lathe
Features
Equipped with a back cutting table to achieve complete simultaneous processing of the spindle side
and the back shaft side;Equipped with a Y-axis back cutting table to provide composite processing capability
on the back side (B0126-V/B0206-V).
The main/back shaft adopts a high output power built-in motor to enhance machining capability.
Equipped with a Y-axis back cutting table, it can accommodate up to 6 power heads, corresponding
to various back processing requirements (B0126-V/B0206-V).
Shorten the processing cycle time.
Adopting a fixed product discharge chute without interference with the front cutting table,
the product recycling time is shortened to 1 second.
Optimized the movement of the slider and the starting action of the power head, reducing pause time
The maximum speed of 10000min-1 is the power head of the front cutting table (optional),
which shortens the machining cycle of small diameter holes.
Based on the workpiece, guide sleeves can be selected.Non guide sleeve device (optional)

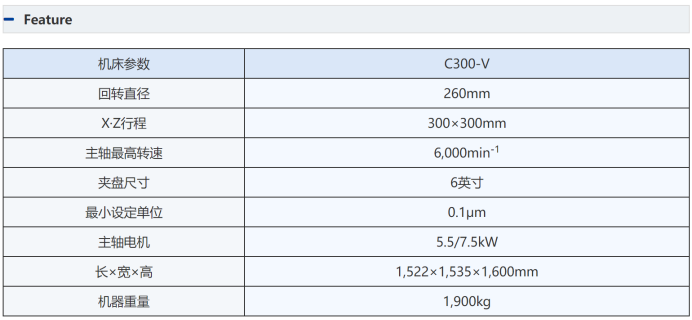

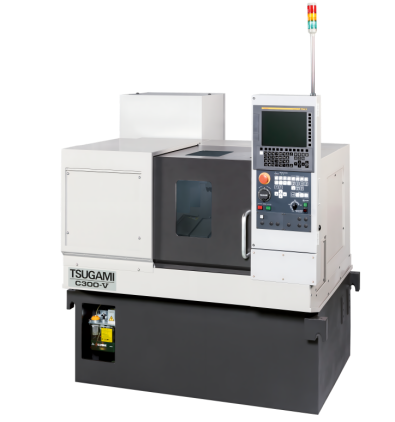

C300-V lathe
Features
The electric spindle drive device effectively eliminates vibration and improves surface smoothness.
Standard spindle cooling device to eliminate the impact of thermal displacement.
Adopting high rigidity hard rails to absorb heavy cutting loads and ensure stable machining accuracy.
Apply pre tension to the screw rod to suppress thermal displacement during cold start.
The processing plan is comprehensive and can flexibly correspond to the processing needs
of long axis workpieces and chuck workpieces based on the type of workpiece.

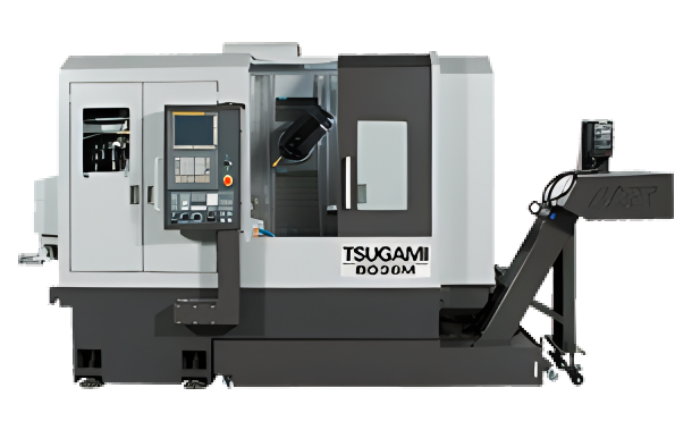

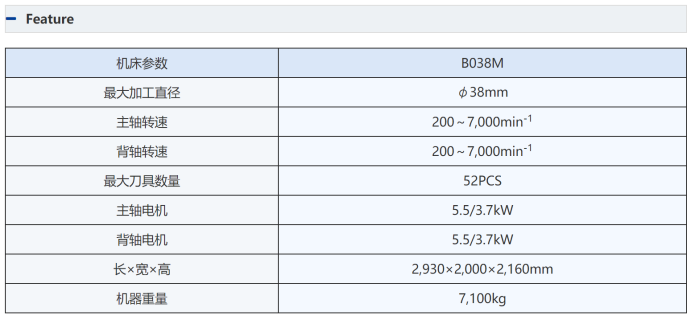

B038M lathe
Features
Batch processing of high-precision and complex parts using bar materials.
Equipped with a standard tool spindle with a maximum speed of 20000min-1, achieving efficient machining.
Utilizing a tool spindle and a tool magazine with 40 tools, corresponding to composite machining of multiple tools.
Equipped with double-sided constrained tool holder (CAPTO C4), corresponding to heavy cutting.

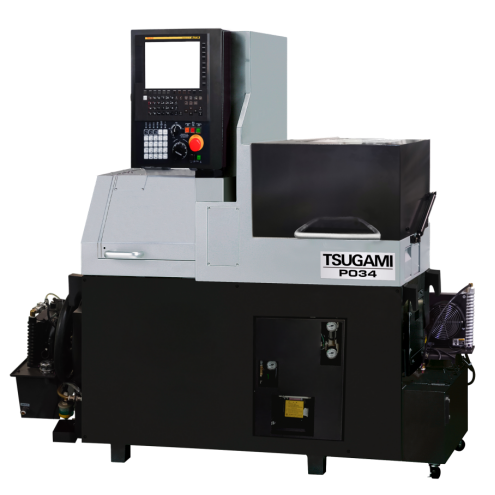

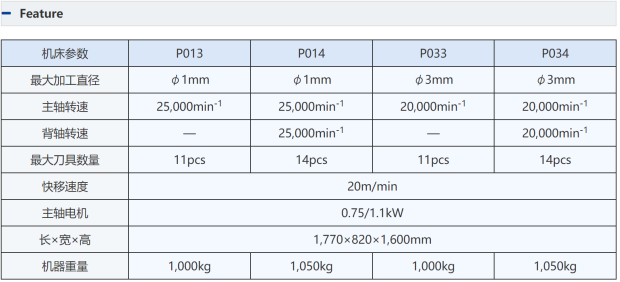

P013 P014 P033 P034 lathe
Features
Adopting anti heat measures and automatic correction system to reduce size changes during cold start.
Increase the capacity of the coolant tank.
Standard cutting fluid cooling fan, X · Y axis motor air cooling, spindle 0 correction system.
The main shaft and back shaft are equipped with high-speed main shafts of 25000min-1/20000min-1 respectively.
By adjusting the clamping force of the main shaft and back shaft, the chuck can easily grip fine precision components.
Add software features that facilitate the processing of fine precision components (tool tip center height correction software).
High precision structure with high rigidity bed and symmetrical structure.
Occupying 0.8 square meters to save space.

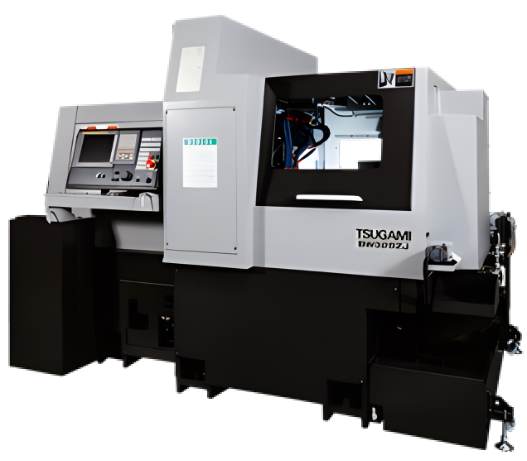

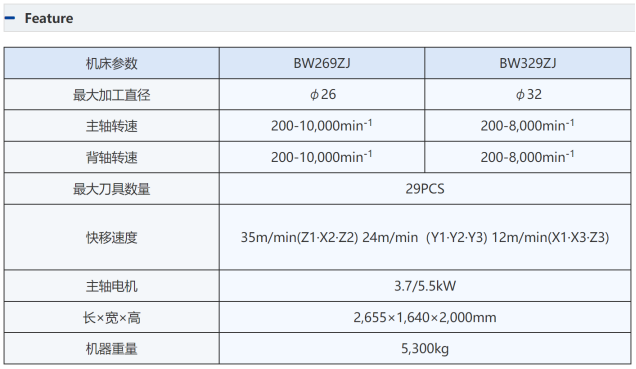

BW269ZJ BW329ZJ lathe
Simultaneous control of 3 systems, independent control of each cutting table,achieving rich
and colorful simultaneous processing of front and back surfaces and shortest processing time.
3 system control, zero tool change time.
Rich power head, complex shaped workpieces can also be processed in a short time.
Embedded power head, can be freely configured according to the needs of the workpiece.
According to the workpiece, guide sleeves and non guide sleeve devices can be selected.

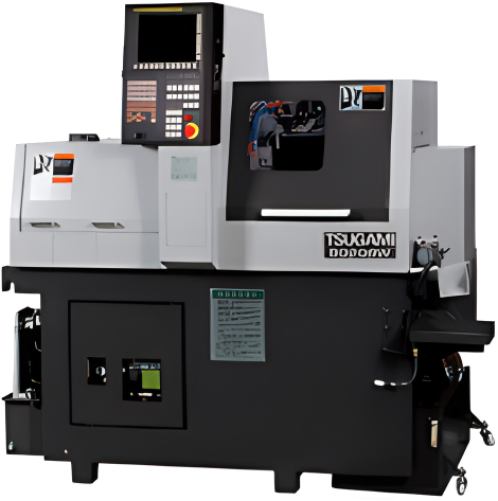

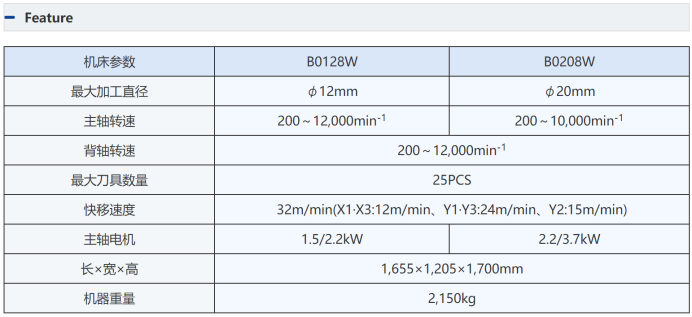

B0128W B0208W lathe
Features
3-system 8-axis control, multiple simultaneous processing, high productivity.
B0 series with independent drive of front and rear blade tables for opposite blade arrangement.
Ultra high cost performance ratio.

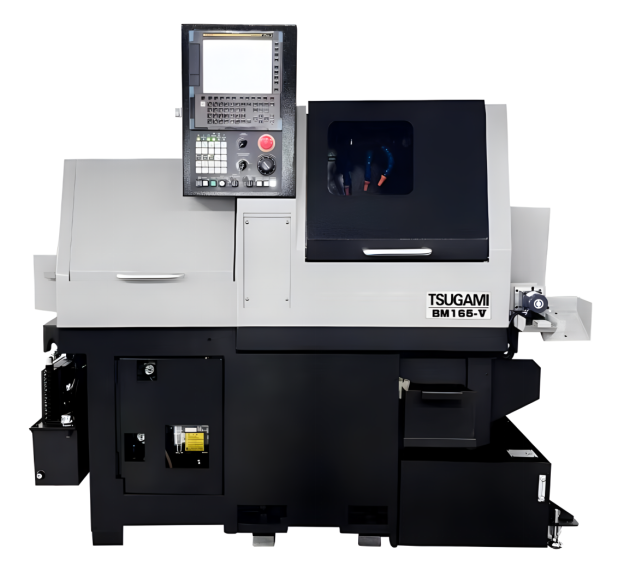

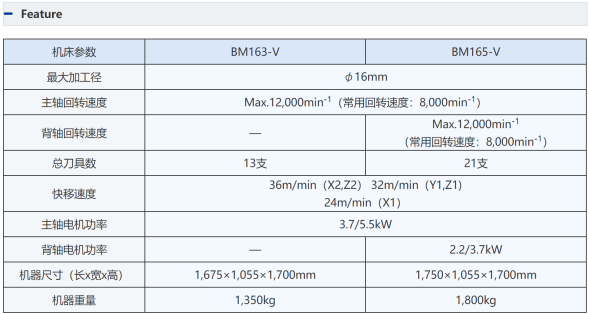

BM163-V BM165-V
Features
Specialized machine without guide sleeve, with more stable processing accuracy,
Front and back can be processed simultaneously (BM165-V).
No need to use grinding materials, cold drawn bars can be processed directly with high precision.

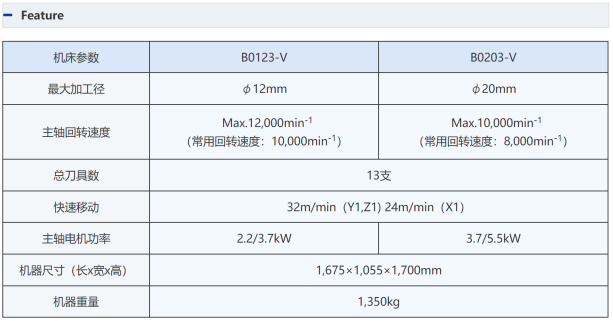

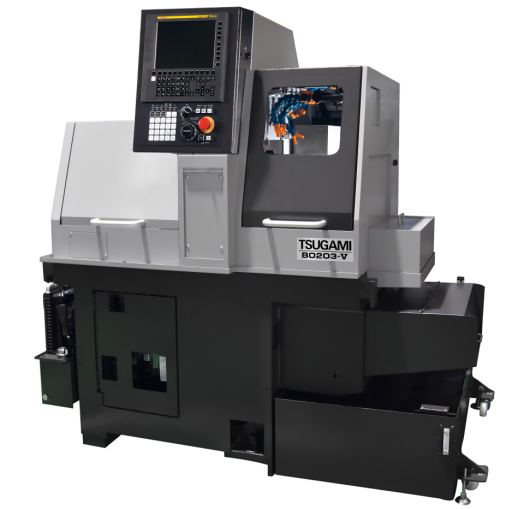

B0123-V B0203-V lathe
Features
Basic structure, achieving high-precision machining.
Basic models with low investment and high returns.
The spindle adopts a high output power built-in motor to enhance processing capability.
The maximum speed of 10000min-1 is the power head of the front cutting table (optional),
which shortens the machining cycle of small diameter holes.
Based on the workpiece, guide sleeves can be selected.Non guide sleeve device (optional)
